2250.0 | Statron

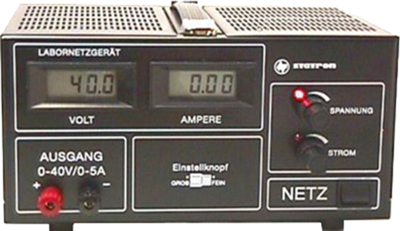

Laboratory power supply, 40 VDC, outputs: 3 (5 A), 0 to 5 A, 200 W, 230 VAC, 2250.0
Power supplies or DC voltage regulators, type Statron 22.
Desktop unit; Features: linear control with transformer switching, short circuit-proof, auto-mode CV/CC. Voltage/current control, separate voltage and current displays. Convection cooling (type 2223 and 2250), floating potential output. Handle. Voltage/current display: digital, 3.5-digit, LCD, 13 mm. Trimmer for output voltage/current: twin potentiometer. 270 %, rough and fine. Settling time on load 10 to 100 % = 100 µs. Adjustment resolution: 0.1 %. Characteristic curve: V/I. Operating temperatures: 0 to +35 °C. Input voltage: 230 V +6.0/–10 %, 48 to 62 Hz. Test voltages: input to ground 1.5 kV, primary to secondary circuit 1.5 kV, output to ground 500 V. Safety class: I.
With output voltage 0 to 40 VDC and max. 5.0 A output current, type 2250.0.
Stability V/I: 20 mV/5.0 mA with line voltage +6.0/–7.0 %, 40 mV/10 mA with load 0 to 100 %. Voltage/current residual ripple: 2.0 mV/5.0 mA. Dimensions: W 260, H 140, D 200. Weight: approx. 7.0 kg.
Type: 2250.0, AC/DC adapter
| Anzahl der Ausgänge | 3 | |
| Ausgangsspannungsbereich | 40 VDC | |
| Ausgangsstrom | 5 A | |
| Breite | 260 mm | |
| Eingangsspannungsbereich | 230 VAC | |
| Höhe | 140 mm | |
| Leistung | 200 W | |
| Tiefe | 200 mm | |
| Ausgangsstrombereich | 0 bis 5 A |
| Ursprungsland | DE |
| Zolltarifnummer | 85043121 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
