2255.1 | Statron
Laboratory power supply, 13,8 VDC, outputs: 3 (6 A), 83 W, 230 VAC, 2255.1
Order No.: 24K7030
EAN: 4099891481094
MPN:
2255.1
Unit Price (€ / pc.)
214.7593 € *
Available: 0 pcs.
Leadtime: 1 Week **

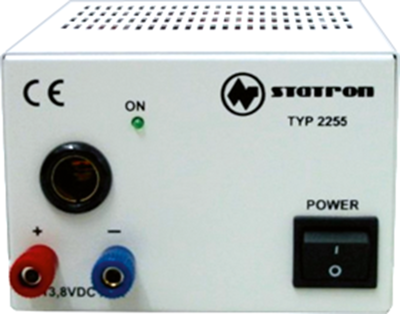

Fixed-voltage power supplies, type Statron 2255.
Desktop unit; Features: linear controller, short circuit-proof, floating potential output, convection cooling. Output voltage: 13.8 V. Output current: 6.0 A. Voltage stability: 5.0 mV at line voltage +6.0/–10 %, 20 mV with load 0 to 100 %. Residual ripple: 90 mV. Settling time: 100 µs. Characteristic: fold back. Display: none. Connection: binding posts and automotive jack. Dimensions in mm: W 110, H 80, W 185. Degree of protection: IP 30. Operating temperatures: 0 to +35 °C. Input voltage: 230 V +6.0/–10 % (48 to 62 Hz). Weight: approx. 3.0 kg, Safety class: II. Test voltages: 1.5 kV input to ground, 3.75 kV primary to secondary circuit, 500 V output to ground.
Type: 2255.1, AC/DC adapter
Technical specifications
| Anzahl der Ausgänge | 3 | |
| Ausgangsspannungsbereich | 13,8 VDC | |
| Ausgangsstrom | 6 A | |
| Breite | 110 mm | |
| Eingangsspannungsbereich | 230 VAC | |
| Höhe | 80 mm | |
| Leistung | 83 W | |
| Tiefe | 185 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85043121 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
