3256.1 | Statron

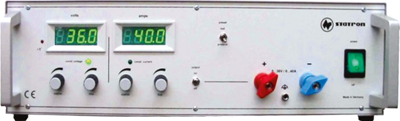

Laboratory power supply, 36 VDC, outputs: 3 (40 A), 0 to 40 A, 144 W, 230 VAC, 3256.1

Order No.: 24K7120
EAN: 4099891481285
MPN:
3256.1
Statron
3256.1 Statron Bench Power Supplies and Loads
Image may differ
Unit Price (€ / pc.)
1,781.7870 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
1,781.79 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1,781.7870 €

3256.1, AC/DC Adapter

with triac primary regulator and output on/off switch. Desktop unit, suitable for installation in 19" racks. Linear control loop. Short circuit-proof. Auto-mode CV/CC. Output data preset. Voltage/current control. Separate display of current and voltage. Forced cooling. Ungrounded output. Output voltage: 0 to 36 V. Output current: 0 to 40 A. Voltage/current stability: 1.0 mV/10 mA with line voltage +6.0/ - 7.0 %, 3.0 mV/10 mA under 0 to 100 % load. Residual ripple, voltage/current: 2.0 mV/15 mA. Trimmers for output voltage/current: 270° potentiometer (1:10) for rough and fine adjustment. Settling time on 10 % to 100 % load: 30 ms. Adjustment resolution: 0.05 %. Characteristic: voltage/current. Voltage/current display: LCD, 3.5-digit, 13 mm. Operating temperatures: 0 to +35 °C. Input voltage: 230 V +6.0/ - 7.0 %, 48 to 62 Hz. Safety class: I/IP 30. Dimensions: W 445, H 134, D 410 mm. Weight: approx. 31 kg.

Technical specifications
Number of outputs 3
Output voltage DC 36 VDC
Output current 40 A
Width 443 mm
Input voltage AC 230 VAC
Height 134 mm
Power 144 W
Depth 405 mm
Range of Output Currence 0 to 40 A
Logistics
Country of origin DE
Customs tariff number 85043121
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
