3262.1 | Statron

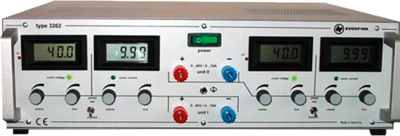

Laboratory power supply, 40 VDC, outputs: 3 (10 A/10 A), 0 to 10 A, 400 W, 230 VAC, 3262.1
Power supplies or DC voltage regulators, type Statron 3262.1.
Desktop device with two outputs; Features: supports series and parallel operation, linear control loop, ungrounded output, voltage and current control loop, regulated forced cooling. Operation: 230 V +6.0/–7.0 % (48 to 62 Hz). Output voltages: 2 x 0 to 40 V, infinitely variable. Output current: 2 x 0 to 10 A. Voltage stability: 1.0 mV on mains +6.0/–7.0 %, 3.0 mV on load 0 to 100 %. Residual ripple: 2.0 mVRMS. Settling time: 200 µs. Display for current and voltage: 3 1/2-digit LCD. Operating temperatures: 0 to +35 °C. Safety class: I. Degree of protection: IP 30. Safety: to EN61010, EN61558-2-4. EMC: EN61000-6-3, EN6100-6-2. Dimensions: W 451, H 134, D 410 mm. Weight: 23 kg.
Type: 3262.1, power supply
| Anzahl der Ausgänge | 3 | |
| Ausgangsspannungsbereich | 40 VDC | |
| Ausgangsstrom | 10 A | |
| Ausgangsstrom 2 | 10 A | |
| Breite | 443 mm | |
| Eingangsspannungsbereich | 230 VAC | |
| Höhe | 134 mm | |
| Leistung | 400 W | |
| Tiefe | 410 mm | |
| Ausgangsstrombereich | 0 bis 10 A |
| Ursprungsland | DE |
| Zolltarifnummer | 85043121 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
