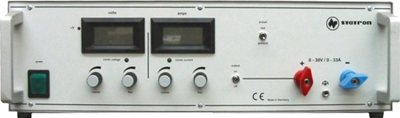

3654.1, AC/DC Adapter
desktop unit, suitable for installation in 19" racks, primary clock mode switching regulator, PFC > 0.98, short circuit-proof, automatic operating state toggle CV/CC, preset of output data, voltage and current control loop, switch for deactivating the output voltage, separate display for voltage and current, regulated fan cooling, floating potential output, can be wired in parallel or in series. Output voltage: 0 to 30 VDC. Output current: 0 to 33 A. Stability V/I: 2.0 mV/2.0 mA with mains ±10 %, 10 mV with load 0 to 100 %/15 mA with load 5.0 to 100 %. Residual ripple V/I: < 50 mVpp (6.0 mVRMS)/55 mA pp (22 mA rms). Settling time load 10 to 100 %/100 to 30 %: < 2.0 ms, trimmer Vo/Io: 270° potentiometer (1:10) for rough and fine adjustment. Adjustment resolution: 0.05 %. Characteristic: V/I, display V/I: 3-digit LCD 13 mm, LED for thermal overload. Operating temperatures: 5.0 to +35 °C. Input voltage/current: 230 VAC +10/ - 10 % 48 to 62 Hz/max. 6.0 A. Test voltages: input to ground 1.5, primary to secondary 2.5, output to ground 500 VAC. Safety class: I/IP 30. Dimensions: W 445, H 134, D 320 mm. Weight: approx. 10.5 kg.
