3656.1 | Statron
Laboratory power supply, 30 VDC, outputs: 3 (66 A), 0 to 66 A, 1980 W, 230 VAC, 3656.1
Order No.: 24K7132
EAN: 4099891481315
MPN:
3656.1
Unit Price (€ / pc.)
2,846.8013 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
2,846.80 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2,846.8013 €

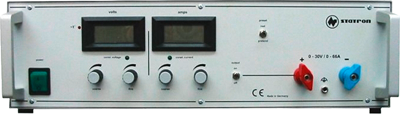

Power supplies or DC voltage regulators, type Statron 3656.1.
Desktop device; Features: primary clock mode switching regulator, short-circuit proof, ungrounded output, voltage and current control, controlled fan cooling. Operating voltage: 230 V ±10 % (48 to 62 Hz). Output voltage: 0 to 30 V with linear adjustment. Output current: 0 to 66 A. Voltage stability: 2.0 mV on mains 10 %, 12 mV on load 0 to 100 %. Residual ripple: 6.0 mVRMS. Settling time: < 2.0 ms. Display of current and voltage: 3 1/2-digit LCD. Operating temperatures: +5.0 to +35 °C. Safety class: I. Degree of protection: IP 30. Safety to EN 61010, EN 61558-2-17. EMC: EN 61204-3. Dimensions: W 445, H 134, D 410 mm. Weight: 16 kg.
Type: 3656.1, AC/DC adapter
Technical specifications
| Anzahl der Ausgänge | 3 | |
| Ausgangsspannungsbereich | 30 VDC | |
| Ausgangsstrom | 66 A | |
| Breite | 451 mm | |
| Eingangsspannungsbereich | 230 VAC | |
| Höhe | 134 mm | |
| Leistung | 1980 W | |
| Tiefe | 410 mm | |
| Ausgangsstrombereich | 0 bis 66 A |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85043121 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
