01350.0-00 | STEGO

Door contact switch, Form C (NO/NC), plastic, (W x H x D) 64 x 87 x 30 mm, gray/black, 01350.0-00

Order No.: 80H7862
EAN: 4099889578317
MPN:
01350.0-00
Türkontaktsch. Wechsler DS 013

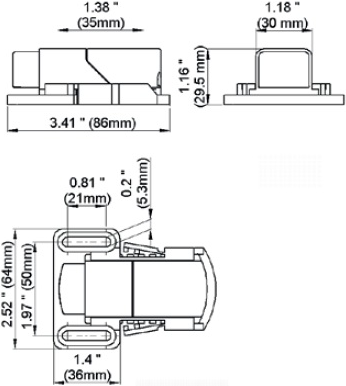

01350.0-00 STEGO Accessories for Enclosures Image 1

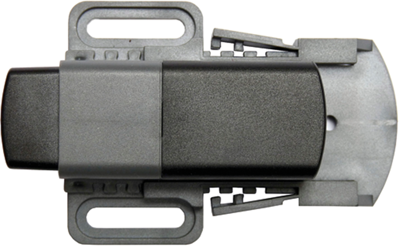

01350.0-00 STEGO Accessories for Enclosures Image 2
Image may differ
Unit Price (€ / pc.)
29.0479 € *
Available: 6 pcs.
Leadtime: 1 Week **
Total Price:
29.05 € *
Price list
Quantity
Price per unit*
1 pcs.
29.0479 €
5 pcs.
27.3105 €
15 pcs.
26.2633 €
50 pcs.
25.0971 €
150 pcs.
24.0499 €
*incl. VAT plus shipping costs
**Subject to prior sale

Door contact switch, 01350.0-00, STEGO

The door switch monitors the position of cabinet doors. It can be used for switching a light when opening a door (NC), or to activate a fan when closing a door (NO). The wide mechanical adjustment range of the door switch DS 013 offers versatile application areas: the housing is adjustable within a 35 mm range, while the screw flange with a slotted hole offers an additional 21 mm. The switching travel of the switch itself is another 8 mm.

Features

  • Adjustable positioning without tools
  • High switching capacity
  • Double strain relief
  • Suitable for lamp LED 025
Technical specifications
Version wechsler
Width 64 mm
Colour grau/schwarz
Height 87 mm
Material Kunststoff
Product type Türkontaktschalter
Degree of protection (IP) IP20
Depth 30 mm
Logistics
Country of origin FR
Customs tariff number 85365007
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
