02540.1-00 | STEGO
LED light, 5 W, 400 lm, 6500 K, 02540.1-00
Unit Price (€ / pc.)
116.3582 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
116.36 € *
Price list
Quantity
Price per unit*
1 pcs.
116.3582 €
5 pcs.
110.5510 €
10 pcs.
104.7200 €
*incl. VAT plus shipping costs
**Subject to prior sale

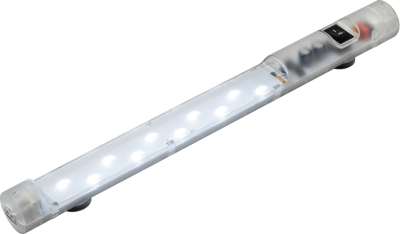

LED lamp with magnetic holder, type STEGO LED 02540
For control cabinets, with internal power supply, continuous wiring, rapid connection with plug-in contacts. On and off switch.
Power consumption: max. 5.0 W
Radiation angle: 120°
Color temperature: 6500 K
Luminous intensity: 400 lm (corresponds to 95 W filament bulb)
Useful life at +20 °C: 60000 h
Safety class: II
Degree of protection: IP 20
Certifications: VDE, cULus, EAC
Ambient temperatures: - 30 to + 60 °C
Dimensions: 351 x 32 x 39 mm
Technical attributes (type, rated voltage, working range): 02540.1-00, 24 to 48 VDC, 20 to 60 VDC
Technical specifications
| Version | LED light with magnetic attachment | |
| diameter | 32 mm | |
| Colour temperature | 6500 K | |
| Height | 39 mm | |
| Length | 351 mm | |
| Power | 5 W | |
| Luminous flux | 400 lm | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Country of origin | DE |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
