01882.1-00 | STEGO

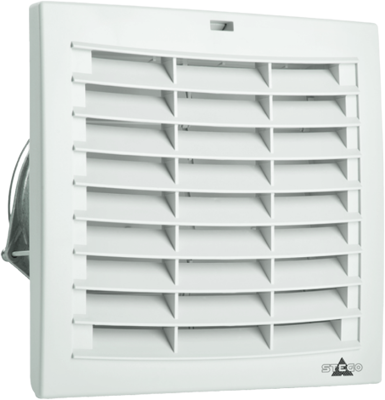

Filter fan, 48 V, 215 x 215 x 117 mm, 277 m³/h, 63 dB, ball bearing, STEGO 01882.1-00

Order No.: 80H7935
EAN: 4251823454730
MPN:
01882.1-00
Series: FPO 018
01882.1-00 STEGO Panel-Mount Fans
Image may differ
Unit Price (€ / pc.)
171.2529 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
171.25 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
171.2529 €

Filter fan plus, 01882.1-00, STEGO

Filter fan is used to provide an optimum climate in enclosures and cabinets with electrical/electronic components. The interior temperature of an enclosure can be reduced by channelling cooler filtered outside air into the enclosure thus expelling heated internal air. The resulting airflow prevents formation of localised hot pockets in installations and protects electronic components from overheating.

Features

  • New air-flap outlet technology for high airflow
  • One filter mat
  • Easy mounting
Technical specifications
Width 215 mm
Height 215 mm
Type of bearing Kugellager
Rated voltage 48 V
Sound pressure level 63 db
Degree of protection (IP) IP54
Depth 117 mm
Volume flow 277 m³/h
Logistics
Country of origin DE
Customs tariff number 84145100
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
