TIP120 | STMicroelectronics

Bipolar junction transistor, NPN, 5 A, 60 V, THT, TO-220, TIP120

Order No.: 25S3300
EAN: 4099879029829
MPN:
TIP120
Series: TIP
STMicroelectronics
TIP120 STMicroelectronics Bipolar Transistors

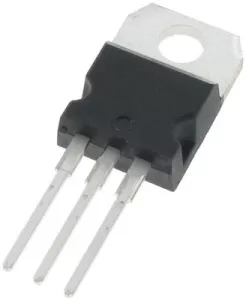

Image may differ
Print
Key Specification:
Assembly THT
Enclosure TO-220
Version NPN
Saturation voltage 2 V
Collector current 5 A
Show 4 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
1.4280 € *
Available: 148 pcs.
Leadtime: On Request **
Total Price:
1.43 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4280 €
10 pcs.
0.8925 €
50 pcs.
0.7854 €
250 pcs.
0.6783 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

NPN transistor, TIP120, STMicroelectronics

This transistor shows exceptional high gain performance coupled with very low saturation voltage. It is suitable for general purpose linear and switching applications.
Technical specifications
Version NPN
Enclosure TO-220
max. operating temperature 150 °C
max.voltage between collector and base Vcbo 60 V
max.voltage between collector and emitter Vceo 60 V
min. operating temperature -65 °C
Assembly THT
Rated current 5 A
Saturation voltage 2 V
Power dissipation 65 W
Collector current 5 A
Min DC gain 1000 mA
Show similar products 0
Logistics
Country of origin CN
Customs tariff number 85412900
MSL MSL 1
Original Packaging Bar with 50 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
