L78S15CV | STMicroelectronics

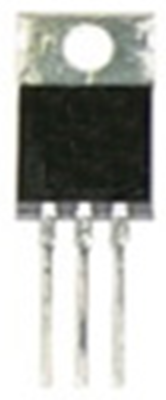

Voltage regulator, 15 VDC, 2 A, positive, TO-220, L78S15CV
Order No.: 50S1434
EAN: 4099879101242
MPN:
L78S15CV
Unit Price (€ / pc.)
1.0829 € *
Available: 198 pcs.
Leadtime: 2 Weeks **
Total Price:
1.08 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0829 €
25 pcs.
0.8687 €
100 pcs.
0.7378 €
250 pcs.
0.6426 €
1000 pcs.
0.5950 €
*incl. VAT plus shipping costs
**Subject to prior sale
Voltage regulator, L78S15CV, STM
The L78S15CV is a three-terminal positive regulator. This regulator can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. If adequate heat sink is provided, it can deliver over 2 A output current. Although designed primarily as fixed voltage regulator, this device can be used with external components to obtain adjustable voltages and currents.
Features
- Output transition SOA protection
- Thermal protection
- Short circuit protection
- Output current up to 2 A
Technical specifications
| Number of Regulators | 1 | |
| Version | fixed | |
| Output voltage DC | 15 VDC | |
| Output current | 2 A | |
| Input voltage AC | 18-35 V | |
| Enclosure | TO-220 | |
| max. operating temperature | 150 °C | |
| min. operating temperature | 0 °C | |
| Assembly | THT | |
| Polarity | positive |
Download
Logistics
| Country of origin | QU |
| Customs tariff number | 85423390 |
| Original Packaging | Bar with 50 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
