M24128-BWMN6TP | STMicroelectronics

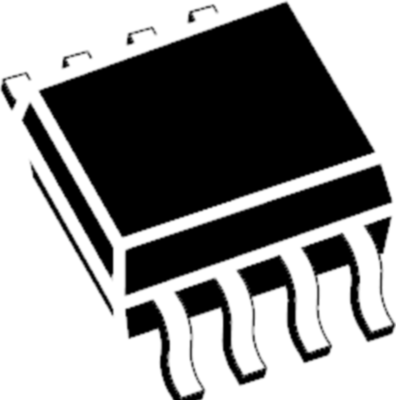

EEPROM 256 kbit, SOIC-8, M24128-BWMN6TP
Order No.: 30S1151
EAN: 4099879150165
MPN:
M24128-BWMN6TP
Unit Price (€ / pc.)
0.2285 € *
Available: 0 pcs.
Leadtime: On Request **
EEPROM, M24128-BWMN6TP, STMicroelectronics
The M24128 is a 128-Kbit I2C-compatible EEPROM (Electrically Erasable PROgrammable Memory) organized as 16 K × 8 bits.The M24128-BW can operate with a supply voltage from 2.5 V to 5.5 V, the M24128-BR can operate with a supply voltage
FEATURES
- Write protect of the whole memory array
- Enhanced ESD/Latch-Up protection
- More than 4 million Write cycles
- More than 200-years data retention
- Page Write within 5 ms
Technical specifications
| Enclosure | SOIC-8 | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Voltage | 2.5-5.5 V | |
| Memory size | 256 kbit | |
| Clock frequency | 1 MHz | |
| Technology | EEPROM | |
| Access time | 450 s |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85423275 |
| MSL | MSL 1 |
| Original Packaging | Reel with 2,500 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
