M24256-BWDW6TP | STMicroelectronics

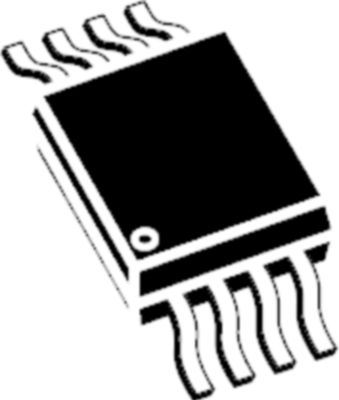

EEPROM 256 kbit, SOIC-8, M24256-BWDW6TP
Order No.: 30S1153
EAN: 4099879150172
MPN:
M24256-BWDW6TP
Unit Price (€ / pc.)
0.2618 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
EEPROM, M24256-BWDW6TP, STMicroelectronics
The M24256-BWDW6TP can operate with a supply voltage from 2.5 V to 5.5 V, the M24256-BR and M24256-DR can operate with a supply voltage from 1.8 V to 5.5 V, and the M24256-BF and M24256-DF can operate with a supply voltage from 1.7 V to 5.5 V. All these devices operate with a clock frequency of 1 MHz (or less), over an ambient temperature range of -40 °C / +85 °C.
Features
- Write protect of the whole memory array
- Enhanced ESD/Latch-Up protection
- More than 4 million Write cycles
- More than 200-years data retention
Technical specifications
| Gehäuse | SOIC-8 | |
| max. Temperatur | 85 °C | |
| min. Temperatur | -40 °C | |
| Montage | SMD | |
| Spannung | 2,5-5,5 V | |
| Speichergröße | 256 kbit | |
| Taktfrequenz | 1 MHz | |
| Technologie | EEPROM | |
| Zugriffszeit | 450 s |
Download
Logistics
| Zolltarifnummer | 85423275 |
| MSL | MSL 1 |
| Originalverpackung | Rolle mit 4.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
