M24512-WMN6TP | STMicroelectronics

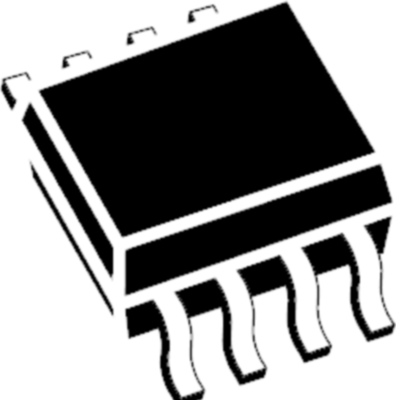

EEPROM 512 kbit, SOIC-8, M24512-WMN6TP
Order No.: 30S1159
EAN: 4099879150226
MPN:
M24512-WMN6TP
Unit Price (€ / pc.)
0.3213 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
EEPROM, M24512-WMN6TP, STMicroelectronics
The M24512-WMN6TP is a 512-Kbit I2C-compatible EEPROM (Electrically Erasable PROgrammable Memory) organized as 64 K × 8 bits. The M24512-W can operate with a supply voltage from 2.5 V to 5.5 V, the M24512-R can operate with a supply voltage from 1.8 V to 5.5 V and the M24512-DF can operate with a supply voltage from 1.7 V to 5.5 V. All these devices operate with a clock frequency of 1 MHz (or less) over an ambient temperature range of -40 °C / +85 °C.
Features
- Write protect of the whole memory array
- Enhanced ESD/Latch-Up protection
- More than 4 million Write cycles
- More than 200-years data retention
Technical specifications
| Enclosure | SOIC-8 | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Voltage | 2.5-5.5 V | |
| Memory size | 512 kbit | |
| Clock frequency | 1 MHz | |
| Technology | EEPROM | |
| Access time | 500 s |
Download
Logistics
| Customs tariff number | 85423275 |
| MSL | MSL 1 |
| Original Packaging | Reel with 2,500 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
