M24C02-RMN6TP | STMicroelectronics

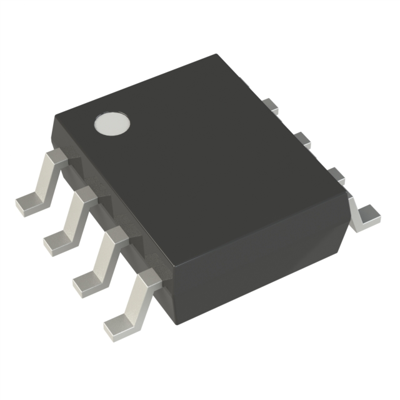

EEPROM 2 kbit, SOIC-8, M24C02-RMN6TP
Order No.: 30S1162
EAN: 4099879150240
MPN:
M24C02-RMN6TP
Unit Price (€ / pc.)
0.1380 € *
Available: 0 pcs.
Available in 5 Days: 550 pcs.
Leadtime: 6 Weeks **
EEPROM, M24C02-RMN6TP, STMicroelectronics
The M24C01(C02) is a 1(2)-Kbit I2C-compatible EEPROM (Electrically Erasable PROgrammable Memory) organized as 128 (256) × 8 bits.The M24C01/02-W can be accessed with a supply voltage from 2.5 V to 5.5 V, the M24C01/02-R can be accessed with a supply voltage from 1.8 V to 5.5 V, and the M24C02-F can be accessed either with a supply voltage from 1.7 V to 5.5 V (over the full temperature range) or with an extended supply voltage from 1.6 V to 1.7 V if the temperature is reduced to 0 °C/ 85
FEATURES
- Write protect of the whole memory array
- Enhanced ESD/Latch-Up protection
- More than 4 million Write cycles
- More than 200-years data retention
- Page Write within 5 ms
Technical specifications
| Enclosure | SOIC-8 | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Voltage | 1.8-5.5 V | |
| Memory size | 2 kbit | |
| Clock frequency | 400 kHz | |
| Technology | EEPROM | |
| Access time | 900 s |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85423275 |
| MSL | MSL 1 |
| Original Packaging | Reel with 2,500 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
