M24C16-RMN6TP | STMicroelectronics

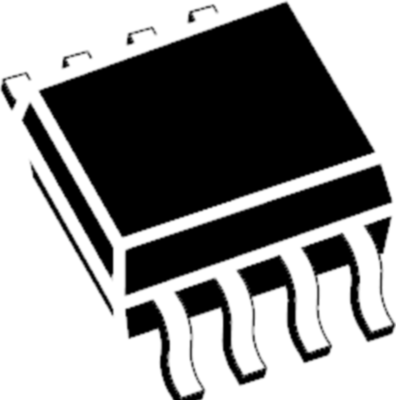

EEPROM 16 kbit, SOIC-8, M24C16-RMN6TP
Order No.: 30S1172
EAN: 4099879150288
MPN:
M24C16-RMN6TP
Unit Price (€ / pc.)
0.1809 € *
Available: 0 pcs.
Available in 5 Days: 6,450 pcs.
Leadtime: 6 Weeks **
EEPROM, M24C16-RMN6TP, STMicroelectronics
The M24C16-RMN6TP is a 16-Kbit I2C-compatible EEPROM (Electrically Erasable PROgrammable Memory) organized as 2 K × 8 bits.
Features
- Write protect of the whole memory array
- Enhanced ESD/Latch-Up protection
- More than 4 million Write cycles
- More than 200-years data retention
Technical specifications
| Enclosure | SOIC-8 | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Voltage | 1.8-5.5 V | |
| Memory size | 16 kbit | |
| Clock frequency | 400 kHz | |
| Technology | EEPROM | |
| Access time | 900 s |
Download
Logistics
| Customs tariff number | 85423275 |
| MSL | MSL 1 |
| Original Packaging | Reel with 2,500 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
