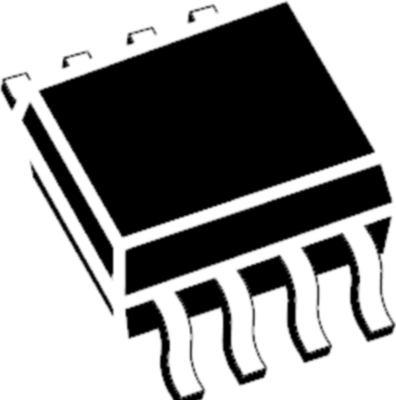

M24C64-WMN6TP | STMicroelectronics
EEPROM 64 kbit, SOIC-8, M24C64-WMN6TP
Order No.: 30S1182
EAN: 4099879150349
MPN:
M24C64-WMN6TP
Unit Price (€ / pc.)
0.1856 € *
Available: 0 pcs.
Available in 5 Days: 27,750 pcs.
Leadtime: 6 Weeks **
EEPROM, M24C64-WMN6TP, STMicroelectronics
The M24C64 is a 64-Kbit I2C-compatible EEPROM (Electrically Erasable PROgrammable Memory) organized as 8 K × 8 bits.Over an ambient temperature range of -40 °C / +85 °C, the M24C64-W can operate with a supply voltage from 2.5 V to 5.5 V, the M24C64-R can operate with a supply voltage from 1.8 V to 5.5 V, and the M24C64-F and M24C64-DF can operate with a supply voltage from 1.7 V to 5.5 V ( the M24C64-F can also operate down to 1.6 V, under some restricting conditions). The M24C64-D offers an additional page, named the Identification Page (32 byte). The Identification Page can be used to store sensitive application parameters which can be (later) permanently locked in Read-only mode.
FEATURES
- Write protect of the whole memory array
- Enhanced ESD/Latch-Up protection
- More than 4 million Write cycles
- More than 200-years data retention
- Page Write within 5 ms
Technical specifications
| Enclosure | SOIC-8 | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Voltage | 2.5-5.5 V | |
| Memory size | 64 kbit | |
| Clock frequency | 1 MHz | |
| Technology | EEPROM | |
| Access time | 450 s |
Download
Logistics
| Country of origin | PH |
| Customs tariff number | 85423275 |
| MSL | MSL 1 |
| Original Packaging | Reel with 2,500 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
