STM32F030C6 | STMicroelectronics

ARM Cortex M0 microcontroller, 32 bit, 48 MHz, LQFP-48, STM32F030C6

Order No.: 51S2372
EAN: 4099879106407
MPN:
STM32F030C6
Series: STM32F030
STMicroelectronics
STM32F030C6 STMicroelectronics Microcontrollers

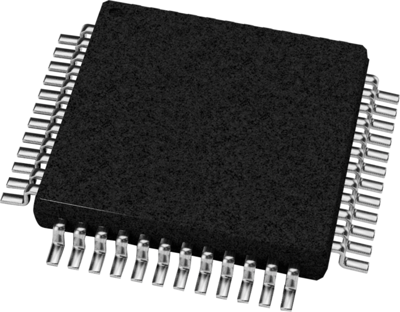

Image may differ
Unit Price (€ / pc.)
1.2138 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1.21 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1500 pcs.
1.2138 €

ARM Cortex M0 microcontroller, STM32F030C6, STMicroelectronics

The STM32F030C6 microcontroller incorporates the high-performance ARM Cortex-M0 32-bit RISC core operating at a 48 MHz frequency, high-speed embedded memories (up to 256 Kbytes of Flash memory and up to 32 Kbytes of SRAM), and an extensive range of enhanced peripherals and I/Os. It is suitable for a wide range of applications such as application control and user interfaces, handheld equipment, A/V receivers and digital TV, PC peripherals, gaming and GPS platforms, industrial applications, PLCs, inverters, printers, scanners, alarm systems, video intercoms, and HVACs.

Features

  • Reset and power management
  • Clock management
  • 5-channel DMA controller
  • Serial wire debug (SWD)
Technical specifications
Number of I/Os 39
Number of pins 48
Version Flash
Enclosure LQFP-48
Core Size 32 bit
max. operating temperature 85 °C
min. operating temperature -40 °C
Assembly SMD
Processor core ARM Cortex M0
Data RAM Size 4 KB
Voltage 1.8-3.6 V
Memory size 32 KB
Clock frequency 48 MHz
Logistics
Country of origin CN
Customs tariff number 85423190
MSL MSL 3
Original Packaging Tray with 250 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
