STM32F030F4P6 | STMicroelectronics

ARM Cortex M0 microcontroller, 32 bit, 48 MHz, TSSOP-20, STM32F030F4P6

Order No.: 51S2378
EAN: 4099879106445
MPN:
STM32F030F4P6
Series: STM32F030
STMicroelectronics
STM32F030F4P6 STMicroelectronics Microcontrollers

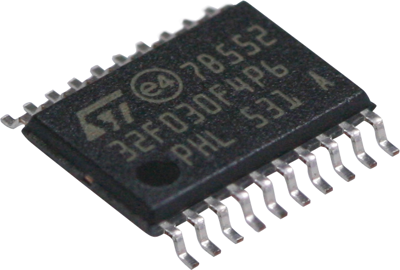

Image may differ
Unit Price (€ / pc.)
1.1543 € *
Available: 0 pcs.
Available in 5 Days: 4,323 pcs.
Leadtime: 4 Weeks **
Total Price:
1.15 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1543 €
10 pcs.
1.0829 €
50 pcs.
1.0115 €
100 pcs.
0.9639 €
250 pcs.
0.9163 €
*incl. VAT plus shipping costs
**Subject to prior sale

ARM Cortex M0 microcontroller, STM32F030F4P6, STMicroelectronics

The STM32F030F4P6 microcontroller incorporates the high-performance ARM Cortex-M0 32-bit RISC core operating at a 48 MHz frequency, high-speed embedded memories (up to 256 Kbytes of Flash memory and up to 32 Kbytes of SRAM), and an extensive range of enhanced peripherals and I/Os. It is suitable for a wide range of applications such as application control and user interfaces, handheld equipment, A/V receivers and digital TV, PC peripherals, gaming and GPS platforms, industrial applications, PLCs, inverters, printers, scanners, alarm systems, video intercoms, and HVACs.

Features

  • Reset and power management
  • Clock management
  • 5-channel DMA controller
  • Serial wire debug (SWD)
Technical specifications
Number of I/Os 15
Number of pins 20
Version Flash
Enclosure TSSOP-20
Core Size 32 bit
max. operating temperature 85 °C
min. operating temperature -40 °C
Assembly SMD
Processor core ARM Cortex M0
Data RAM Size 4 KB
Voltage 2.4-3.6 V
Memory size 16 KB
Clock frequency 48 MHz
Logistics
Country of origin CN
Customs tariff number 85423190
MSL MSL 1
Original Packaging Bar with 74 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
