STM32F030K6T6 | STMicroelectronics

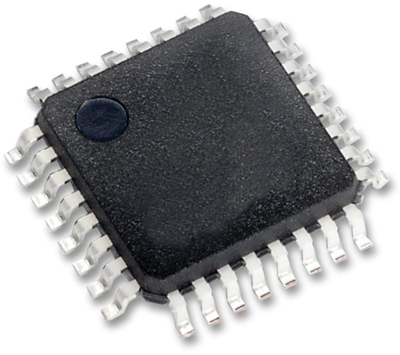

ARM Cortex M0 microcontroller, 32 bit, 48 MHz, LQFP-32, STM32F030K6T6
Microcontroller, STM32F030K6T6, STMicroelectronics
STMicroelectronics ARM Cortex-M0-based STM32F0 series microcontroller incudes the entry level ARM Cortex™ M0 32-bit RISC core. The STM32F030 Value line provides high-speed embedded memory with a range of enhanced peripherals and I/Os. There are communication interfaces such as I2C, SPIs, and USARTs, plus 12-bit ADC, 16-bit timers and an advanced-control PWM timer
ST’s STM32F0 MCUs advanced architecture combined with the STM32 platform allows the design of low power applications which are offered in different package types. The ARM Cortex™-M0 core processor with embedded Flash and SRAM is compatible with all ARM tools and software.
The STM32F030 ARM processor microcontroller (MCU) is suitable for a broad range of applications which include application control and user interface, handheld equipment, A/V receivers, PC peripherals, gaming platforms, consumer appliances, printers, alarm systems and HVACs.
| Filter | Property | Value |
|---|---|---|
| Memory size | 32 KB | |
| max. operating temperature | 85 °C | |
| Core Size | 32 bit | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Clock frequency | 48 MHz | |
| Processor core | ARM Cortex M0 | |
| Voltage | 2.4-3.6 V | |
| Number of I/Os | 26 | |
| Data RAM Size | 4 KB | |
| Number of pins | 32 | |
| Version | flash | |
| Enclosure | LQFP-32 |
| Property | Value |
|---|---|
| Customs tariff number | 85423190 |
| MSL | MSL 3 |
| Original Packaging | Tray with 2,500 pieces |
| Country of origin | CN |
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
