1N5817 | STMicroelectronics

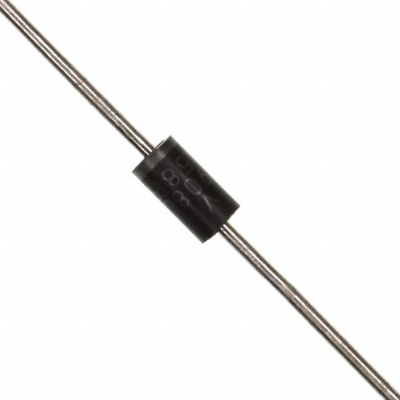

Schottky rectifier diode, 20 V (RRM), 1 A, DO-41, 1N5817
Discontinued
Unit Price (€ / pc.)
0.1131 € *
Available: 21 pcs.
Available in 5 Days: 7,800 pcs.
Leadtime: On Request **
Total Price:
0.11 € *
Price list
Quantity
Price per unit*
1 pcs.
0.1131 €
10 pcs.
0.0809 €
100 pcs.
0.0690 €
500 pcs.
0.0607 €
1000 pcs.
0.0536 €
*incl. VAT plus shipping costs
**Subject to prior sale
Schottky diode, 1N5817, STMicroelectronics
Axial Power Schottky rectifier suited for Switch Mode Power Supplies and high frequency DC to DC converters. Packaged in DO-41 this device is intended for use in low voltage, high frequency inverters, free wheeling, polarity protection and small battery chargers.
Features
- Very small conduction losses
- Negligible switching losses
- Extremely fast switching
- Low forward voltage
Technical specifications
| Number of diodes | 1 | |
| Version | schottky rectifier diode | |
| Forward Current | 1 A | |
| Enclosure | DO-41 | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -65 °C | |
| Assembly | THT | |
| Voltage V RRM (peak reverse voltage) | 20 V | |
| Junction temperature (max.) | 125 °C | |
| Junction temperature (min.) | -65 °C | |
| Surge blocking voltage V RMS | 24 V |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85411000 |
| MSL | MSL 1 |
| Original Packaging | Reel with 2,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
