GE92252B2-000U-AE9 | SUNON
DC axial fan, 24 V, 92 x 92 x 25 mm, 118.93 m³/h, 45 dB, ball bearing, SUNON GE92252B2-000U-AE9
Unit Price (€ / pc.)
61.8681 € *
Available: 0 pcs.
Leadtime: 18 Weeks **

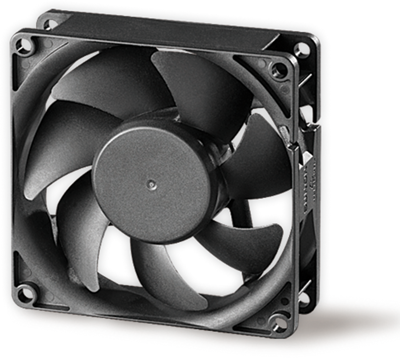

DC Axial fan, GE92252B2-000U-AE9, SUNON
The GE92252B2-000U-AE9 DC axial fan use MagLev to increase performance, durability and reduce noise. Magnetic levitation technology eliminates the need for shaft to bearing contact to ensure friction free operation.
Features
- Precision ball bearing system
- Rated voltage: 12 V DC
- Material of frame thermoplastic PBT
- Insulution resistance 10 ohm minimum at 500 VDC
Technical specifications
| Ausführung | DC-Axiallüfter | |
| Breite | 92 mm | |
| Drehzahl | 4200 1/min | |
| Höhe | 92 mm | |
| Lagerart | Kugellager | |
| Leistungsaufnahme | 3.6 W | |
| Nennspannung | 24 V | |
| Schalldruckpegel | 45 db | |
| Tiefe | 25 mm | |
| Volumenstrom | 118.93 m³/h |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 84145925 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
