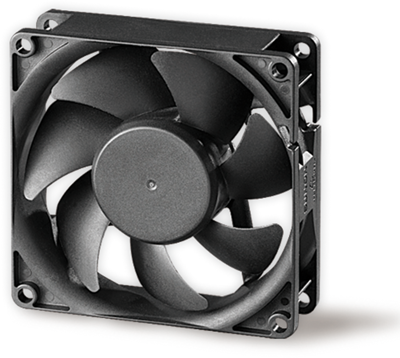

GF80251B2-000U-AE9 | SUNON
DC axial fan, 12 V, 80 x 80 x 25 mm, 96.84 m³/h, 46 dB, ball bearing, SUNON GF80251B2-000U-AE9
Unit Price (€ / pc.)
24.7282 € *
Available: 0 pcs.
Leadtime: 18 Weeks **
DC Axial fan, GF80251B2-000U-AE9, SUNON
The GF80251B2-000U-AE9 DC axial fan use MagLev to increase performance, durability and reduce noise. Magnetic levitation technology eliminates the need for shaft to bearing contact to ensure friction free operation.
Features
- Precision ball bearing system
- Motor design 2 phases, 4- poles brushless DC motor
- Material of frame thermoplastic PBT
- Insulution resistance 10 ohm minimum at 500 VDC
Technical specifications
| Ausführung | DC-Axiallüfter | |
| Breite | 80 mm | |
| Drehzahl | 4500 1/min | |
| Höhe | 80 mm | |
| Lagerart | Kugellager | |
| Leistungsaufnahme | 3 W | |
| Nennspannung | 12 V | |
| Schalldruckpegel | 46 db | |
| Tiefe | 25 mm | |
| Volumenstrom | 96.84 m³/h |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 84145925 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
