GF92251B2-000U-AE9 | SUNON

DC axial fan, 12 V, 92 x 92 x 25 mm, 118.93 m³/h, 45 dB, ball bearing, SUNON GF92251B2-000U-AE9

Order No.: 90B3707
EAN: 4099889484045
MPN:
GF92251B2-000U-AE9
D09032830G-01
Series: GE92
SUNON

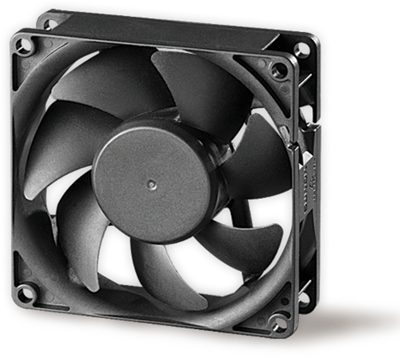

GF92251B2-000U-AE9 SUNON Axial Fans Image 1
GF92251B2-000U-AE9 SUNON Axial Fans Image 2
Image may differ
Unit Price (€ / pc.)
24.7282 € *
Available: 0 pcs.
Available in 4 Days: 11 pcs.
Leadtime: 18 Weeks **
Total Price:
24.73 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
24.7282 €

DC Axial fan, GF92251B2-000U-AE9, SUNON

The GF92251B2-000U-AE9 DC axial fan use MagLev to increase performance, durability and reduce noise. Magnetic levitation technology eliminates the need for shaft to bearing contact to ensure friction free operation.

Features

  • Precision ball bearing system
  • Motor design 2 phases, 4- poles brushless DC motor
  • Material of frame thermoplastic PBT
  • Insulution resistance 10 ohm minimum at 500 VDC
Technical specifications
Version DC axial fan
Width 92 mm
speed 4200 1/min
Height 92 mm
Type of bearing ball bearing
Power consumption 3.6 W
Rated voltage 12 V
Sound pressure level 45 db
Depth 25 mm
Volume flow 118.93 m³/h
Logistics
Country of origin CN
Customs tariff number 84145925
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
