HA60251V4-000U-999 | SUNON

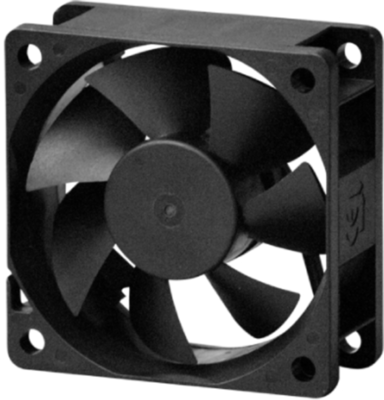

DC axial fan, 12 V, 60 x 60 x 25 mm, 23.44 m³/h, 13.8 dB, vapo, SUNON HA60251V4-000U-999

Order No.: 90B558
EAN: 4099889484274
MPN:
HA60251V4-000U-999
D06077490G-01
Series: HA60
HA60251V4-000U-999 SUNON Axial Fans
Image may differ
Unit Price (€ / pc.)
5.2955 € *
Available: 16 pcs.
Available in 4 Days: 1,640 pcs.
Leadtime: 18 Weeks **
Total Price:
5.30 € *
Price list
Quantity
Price per unit*
1 pcs.
5.2955 €
10 pcs.
4.6648 €
100 pcs.
4.0817 €
250 pcs.
3.9270 €
1000 pcs.
3.6771 €
*incl. VAT plus shipping costs
**Subject to prior sale

DC Axial fan, HA60251V4-000U-999, SUNON

The HA60251V4-000U-999 DC axial fan use MagLev to increase performance, durability and reduce noise. Magnetic levitation technology eliminates the need for shaft to bearing contact to ensure friction free operation.

Features

  • Precision vapo bearing system
  • Motor design 2 phases, 4- poles brushless DC motor
  • Material of frame thermoplastic PBT
  • Insulution resistance 10 ohm minimum at 500 VDC
Technical specifications
Ausführung DC-Axiallüfter
Breite 60 mm
Drehzahl 2500 1/min
Höhe 60 mm
Lagerart Vapo
Leistungsaufnahme 0.7 W
Nennspannung 12 V
Schalldruckpegel 13.8 db
Tiefe 25 mm
Volumenstrom 23.44 m³/h
Logistics
Ursprungsland CN
Zolltarifnummer 84145925
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
