MF30100V1-1000U-A99 | SUNON
DC axial fan, 5 V, 30 x 30 x 10 mm, 9.34 m³/h, 23 dB, vapo, SUNON MF30100V1-1000U-A99
Unit Price (€ / pc.)
17.1241 € *
Available: 0 pcs.
Leadtime: 18 Weeks **
Total Price:
17.12 € *
Price list
Quantity
Price per unit*
1 pcs.
17.1241 €
10 pcs.
15.0773 €
100 pcs.
13.2209 €
250 pcs.
12.7092 €
1000 pcs.
11.8881 €
*incl. VAT plus shipping costs
**Subject to prior sale

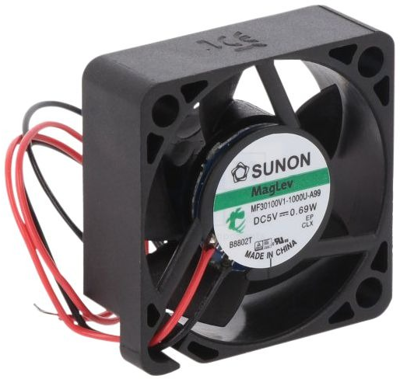

DC Axial fan, MF30100V1-1000U-A99, SUNON
The MF30100V1-1000U-A99 DC axial fan use MagLev to increase performance, durability and reduce noise. Magnetic levitation technology eliminates the need for shaft to bearing contact to ensure friction free operation.
Features
- Single phase, 4-poles Brushless DC motor
- Insulution resistance 10 ohm minimum at 500 VDC
- Material of frame thermoplastic PBT
- Precision vapo bearing system
Technical specifications
| Version | DC axial fan | |
| Width | 30 mm | |
| speed | 11000 1/min | |
| Height | 30 mm | |
| Type of bearing | vapo | |
| Power consumption | 0.6 W | |
| Rated voltage | 5 V | |
| Sound pressure level | 23 db | |
| Depth | 10 mm | |
| Volume flow | 9.34 m³/h |
Download
Logistics
| Country of origin | PH |
| Customs tariff number | 84145925 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
