MF60202V1-1000U-A99 | SUNON

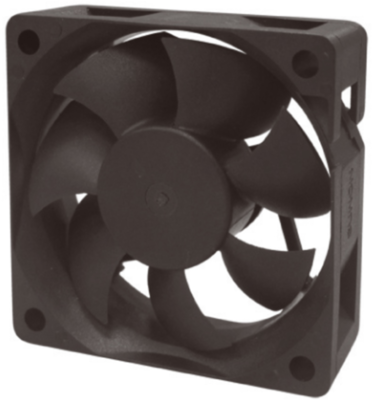

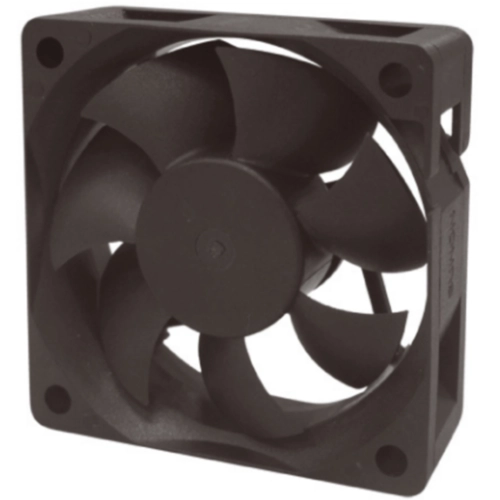

DC axial fan, 24 V, 60 x 60 x 20 mm, 39 m³/h, 33.5 dB, ball bearing, SUNON MF60202V1-1000U-A99
Unit Price (€ / pc.)
10.4244 € *
Available: 9 pcs.
Next delivery: 18 pcs. on 2025-02-24
Leadtime: 18 Weeks **
Total Price:
10.42 € *
Price list
Quantity
Price per unit*
1 pcs.
10.4244 €
10 pcs.
9.1749 €
100 pcs.
8.0563 €
250 pcs.
7.7350 €
1000 pcs.
7.2352 €
*incl. VAT plus shipping costs
**Subject to prior sale
DC Axial fan, MF60202V1-1000U-A99, SUNON
The MF60202V1-1000U-A99 DC axial fan use MagLev to increase performance, durability and reduce noise. Magnetic levitation technology eliminates the need for shaft to bearing contact to ensure friction free operation.
Features
- Single phase, 4-poles Brushless DC motor
- Insulution resistance 10 ohm minimum at 500 VDC
- Material of frame thermoplastic PBT
- Precision vapo bearing system
Technical specifications
| Ausführung | DC-Axiallüfter | |
| Breite | 60 mm | |
| Drehzahl | 5000 1/min | |
| Höhe | 60 mm | |
| Lagerart | Kugellager | |
| Leistungsaufnahme | 1.32 W | |
| Nennspannung | 24 V | |
| Schalldruckpegel | 33.5 db | |
| Tiefe | 20 mm | |
| Volumenstrom | 39 m³/h |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 84145925 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
