PE60251BX-000U-G99 | SUNON
DC axial fan, 12 V, 60 x 60 x 25 mm, 67.96 m³/h, 46 dB, ball bearing, SUNON PE60251BX-000U-G99
Unit Price (€ / pc.)
18.2189 € *
Available: 3 pcs.
Available in 4 Days: 71 pcs.
Leadtime: 18 Weeks **
Total Price:
18.22 € *
Price list
Quantity
Price per unit*
1 pcs.
18.2189 €
10 pcs.
16.0412 €
50 pcs.
14.9345 €
150 pcs.
14.2800 €
500 pcs.
13.5541 €
*incl. VAT plus shipping costs
**Subject to prior sale

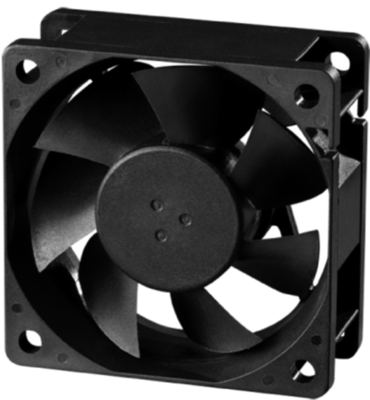

DC Axial fan, PE60251BX-000U-G99, SUNON
The PE60251BX-000U-G99 DC axial fan use MagLev to increase performance, durability and reduce noise. Magnetic levitation technology eliminates the need for shaft to bearing contact to ensure friction free operation.
Features
- Motor design 2 phases, 4- poles brushless DC motor
- Precision ball bearing system
- Material of frame thermoplastic PBT
- Rated voltage 5 V DC
Technical specifications
| Version | DC axial fan | |
| Width | 60 mm | |
| speed | 7600 1/min | |
| Height | 60 mm | |
| Type of bearing | ball bearing | |
| Power consumption | 4.44 W | |
| Rated voltage | 12 V | |
| Sound pressure level | 46 db | |
| Depth | 25 mm | |
| Volume flow | 67.96 m³/h |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 84145925 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
