PMD2406PMB1-A(2).GN | SUNON
DC axial fan, 24 V, 60 x 60 x 38 mm, 95.99 m³/h, 38 dB, ball bearing, SUNON PMD2406PMB1-A(2).GN
Unit Price (€ / pc.)
11.6501 € *
Available: 4 pcs.
Available in 4 Days: 807 pcs.
Leadtime: 18 Weeks **

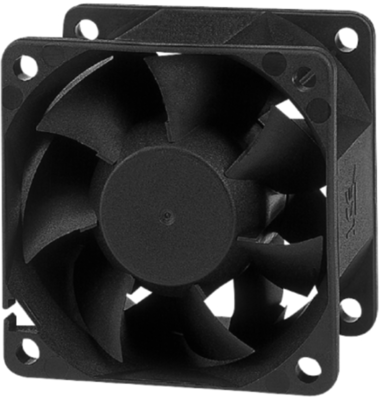

DC Axial fan, PMD2406PMB1-A(2).GN, SUNON
The PMD2406PMB1-A(2).GN DC axial fan use MagLev to increase performance, durability and reduce noise. Magnetic levitation technology eliminates the need for shaft to bearing contact to ensure friction free operation.
Features
- Motor design DC brushless 4 pole
- Insulution resistance 10 ohm minimum at 500 VDC
- Material of frame thermoplastic PBT
- Precision ball bearing system
Technical specifications
| Version | DC-Axiallüfter | |
| Rated voltage | 24 V | |
| Width | 60 mm | |
| Height | 60 mm | |
| Depth | 38 mm | |
| Volume flow | 95.99 m³/h | |
| Sound pressure level | 38 db | |
| speed | 8000 1/min | |
| Type of bearing | Kugellager | |
| Power consumption | 10.3 W |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 84145925 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
