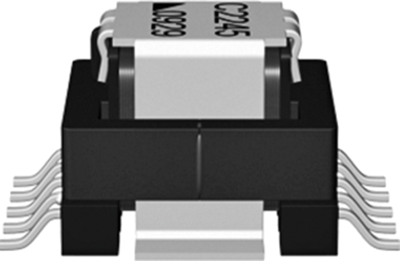

B82801C1265A150 | TDK (EPCOS)
SMD current sense transformer, 14.22 mm, 13.46 mm, 10 mm
Unit Price (€ / pc.)
2.4514 € *
Available: 0 pcs.
Leadtime: 26 Weeks **
SMD current sense transformers, type TDK/Epcos EE 12.6.
Switching mode power supply transformer, with measurable currents of max. 40 A. Dielectric strength. 1500 VAC (50Hz/1.0 s)
Technical specifications
| Windungsverhältnis | 1:150 | |
| Induktivität | 12.6 mH | |
| Bauform | SMD | |
| min. Frequenz | 50 kHz | |
| max. Frequenz | 500 MHz | |
| Gleichstromwiderstand | 2.2 Ω | |
| Länge | 14.22 mm | |
| Breite | 13.46 mm | |
| Höhe | 10 mm | |
| min. Temperatur | -40 °C | |
| max. Temperatur | 125 °C |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85043180 |
| Originalverpackung | Rolle mit 200 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
