B82801C2245A200 | TDK (EPCOS)
Current measuring transformer, 1:200, 22.4 mH, 2.9 Ω, B82801C2245A200
Unit Price (€ / pc.)
2.4514 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1,470.84 € *
Price list
Quantity
Price per unit*
600 pcs.
2.4514 €
2400 pcs.
2.3324 €
*incl. VAT plus shipping costs
**Subject to prior sale

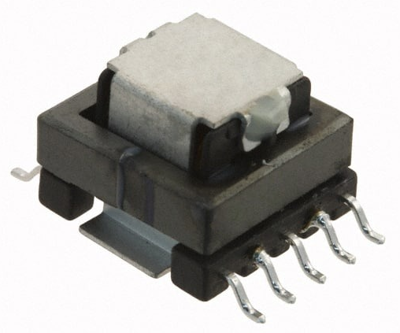

SMD transformer, B82801C2245A200, EPCOS
Features
- Very low DC resistance
- Different turns ratios
- Small package
- Other pinning on request
- RoHS compatible
Technical specifications
| Product type | Strommesswandler | |
| Winding ratio | 1:200 | |
| Inductance | 22.4 mH | |
| Design | SMD | |
| min. frequency | 50 kHz | |
| max. frequency | 500 kHz | |
| DC resistance | 2.9 Ω | |
| Length | 14.22 mm | |
| Width | 13.46 mm | |
| Height | 10 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85043180 |
| Original Packaging | Rolle mit 200 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
