B43643C9567M050 | TDK (EPCOS)

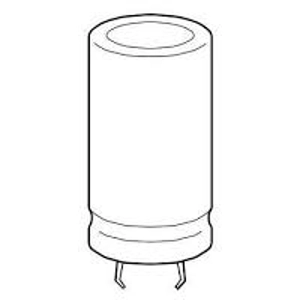

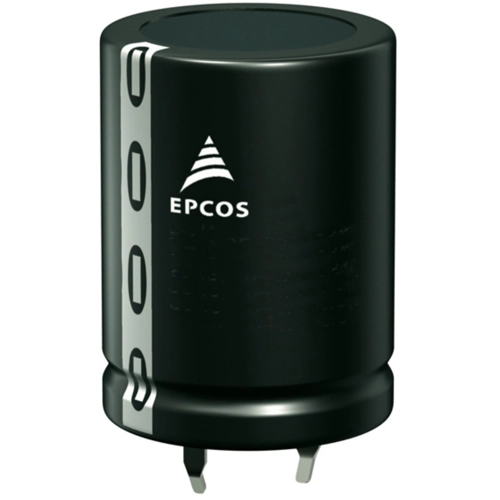

Electrolytic capacitor, 550 µF, 400 V (DC), ±20 %, radial, pitch 10 mm, Ø 35 mm, B43643C9567M050
Unit Price (€ / pc.)
7.4494 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Electrolytic capacitor, B43643C9567M050, EPCOS
Aluminum electrolytic capacitor - Snap-in capacitor
Features
- Extremely high CV product, very compact
- High rated capacitance
- High reliability and high ripple current capability
- RoHS-compatible
Applications
- Frequency converters
- Solar inverters
- Uninterruptible power supplies
- Medical appliances
Technical specifications
| Anschluss | Snap-in | |
| Ausführung | Polar | |
| Bauform | radial | |
| Durchmesser | 35 mm | |
| ESR (Äquivalenter Serienwiderstand) | 190 mΩ | |
| Kapazität | 550 µF | |
| Länge | 30 mm | |
| max. Temperatur | 105 °C | |
| min. Temperatur | -25 °C | |
| Nennspannung (DC) | 400 V | |
| Rastermaß | 10 mm | |
| Rippelstrom | 1.66 A | |
| Toleranz | ±20 % |
Download
Logistics
| Zolltarifnummer | 85322200 |
| Originalverpackung | Karton mit 60 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
