B65646A0250A027 | TDK (EPCOS)
PM core, N27, 250 nH, ±3 %, outer Ø 50 mm, inner Ø 39 mm, (H) 39 mm, B65646A0250A027
Unit Price (€ / pc.)
16.2911 € *
Available: 46 pcs.
Next delivery: 10 pcs. on 2025-03-24
Leadtime: 1 Week **
Total Price:
16.29 € *
Price list
Quantity
Price per unit*
1 pcs.
16.2911 €
30 pcs.
14.3395 €
60 pcs.
13.8516 €
120 pcs.
13.3756 €
510 pcs.
12.5307 €
*incl. VAT plus shipping costs
**Subject to prior sale

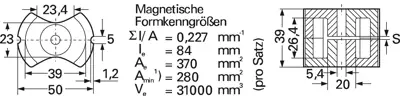

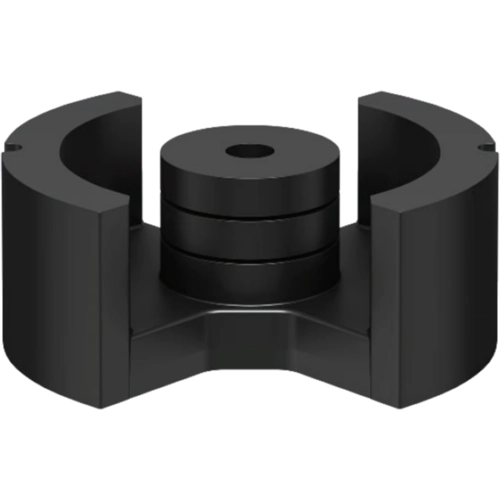

Core kits PM50/39, type TDK/Epcos B65646.
Compliant with IEC 61247, for power transformers and smoothing chokes in clocked high-power power supplies, made of silicon ferrite materials (data listed in table at the end of the section on cores); Basic dimensions of a finished transformer/transponder: L 65, W 52, H 45 mm. Variant: without air gap and with 2.0 mm air gap.
Technical attributes (type, AL value, material type, design): B65646A250A27, 250 nH, N27, gapped
Technical specifications
| AL-Wert | 250 nH | |
| Außendurchmesser | 50 mm | |
| Höhe | 39 mm | |
| Innendurchmesser | 39 mm | |
| Kernform | PM | |
| Luftspalt | 2 mm | |
| Material | N27 | |
| Toleranz | ±3 % |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 85049011 |
| Originalverpackung | Tray mit 30 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
