B67345B0001X087 | TDK (EPCOS)

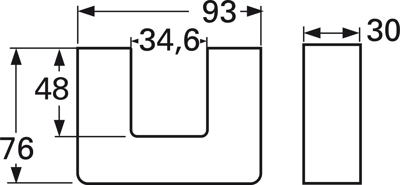

U core, N87, 5700 nH, -20/+30 %, (L x W x H) 93 x 30 x 76 mm, B67345B0001X087
Unit Price (€ / pc.)
36.6401 € *
Available: 55 pcs.
Leadtime: On Request **
Total Price:
36.64 € *
Price list
Quantity
Price per unit*
1 pcs.
36.6401 €
8 pcs.
33.1177 €
16 pcs.
32.2490 €
64 pcs.
30.4759 €
152 pcs.
29.4406 €
*incl. VAT plus shipping costs
**Subject to prior sale

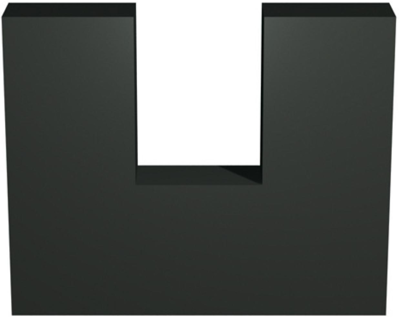

U cores U93/76/30, type TDK/Epcos B67345.
Rectangular cross-section, e. g. for power transformer assemblies; Magnetic field parameters: path length/cross-sectional area/magnetic volume: 354 mm/840 mm²/297000 mm³. Magnetic field parameters and AL values apply to core kits (2 x U) consisting of two cores without air gap. Supplied as per single item.
Technical attributes (type, AL value, material): B67345B1X87, 5700 nH, N87
Technical specifications
| AL-Wert | 5700 nH | |
| Breite | 30 mm | |
| Höhe | 76 mm | |
| Kernform | U | |
| Länge | 93 mm | |
| Luftspalt | kein Luftspalt | |
| Material | N87 | |
| Toleranz | -20/+30 % |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 85049011 |
| Originalverpackung | Bulk mit 8 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
