B32023A3473M289 | TDK (EPCOS)
MKP suppression capacitor, 47 nF, ±20 %, 1.5 kV (DC), PP, 22.5 mm, B32023A3473M289
Order No.: 45D0430
EAN: 4099879822628
MPN:
B32023A3473M289
Unit Price (€ / pc.)
0.5474 € *
Available: 0 pcs.
Leadtime: 18 Weeks **

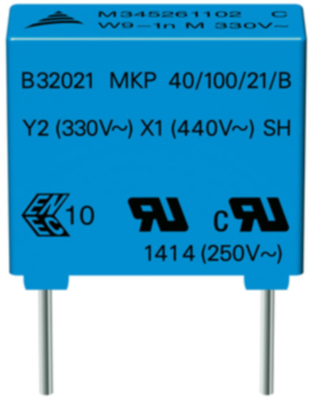

Film capacitor, B32023A3473M289, EPCOS
EMI suppression capacitor (MKP)
Features
- Very small dimensions
- Good self-healing properties
- High voltage capability
- RoHS-compatible
Applications
- Y2 class for interference suppression
- Line to ground
Technical specifications
| Kapazität | 47 nF | |
| Nennspannung (DC) | 1.5 kV | |
| Nennspannung (AC) | 300 V | |
| Toleranz | ±20 % | |
| Dielektrikum | PP | |
| Bauform | radial | |
| Rastermaß | 22.5 mm | |
| Entstörklasse | Y2 | |
| Anzahl der Pins | 2 | |
| Länge | 26.5 mm | |
| Breite | 6 mm | |
| Höhe | 15 mm | |
| min. Temperatur | -40 °C | |
| max. Temperatur | 110 °C |
Download
Logistics
| Ursprungsland | IN |
| Zolltarifnummer | 85321000 |
| Originalverpackung | Ammopack mit 680 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
