B32354S3156K010 | TDK (EPCOS)
MKP film capacitor, 15 µF, ±10 %, 500 V (DC), PP, 52.5 mm, B32354S3156K010
Unit Price (€ / pc.)
6.3189 € *
Available: 0 pcs.
Leadtime: 6 Weeks **

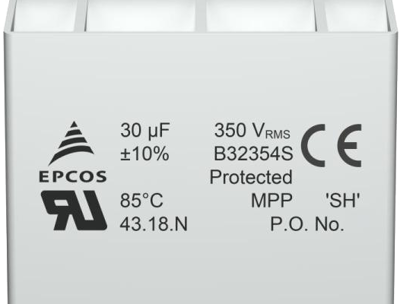

AC Capacitor, B32354S3156K010, EPCOS
Metallized polypropylene film capacitor (MKP)
Features
- Optimized AC voltage performance
- High ripple current/frequency handling capability
- Highest safety level 10 000 AFC to UL 810
- For PCB mounting
Applications
- Output AC filtering for power converters, UPS, motor drives
Technical specifications
| Anzahl der Pins | 4 | |
| Bauform | radial | |
| Breite | 35 mm | |
| Dielektrikum | PP | |
| Höhe | 45 mm | |
| Kapazität | 15 µF | |
| Länge | 57.5 mm | |
| max. Temperatur | 85 °C | |
| min. Temperatur | -40 °C | |
| Nennspannung (AC) | 350 V | |
| Nennspannung (DC) | 500 V | |
| Rastermaß | 52.5 mm | |
| Toleranz | ±10 % |
Download
Logistics
| Zolltarifnummer | 85321000 |
| Originalverpackung | Bulk mit 27 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
