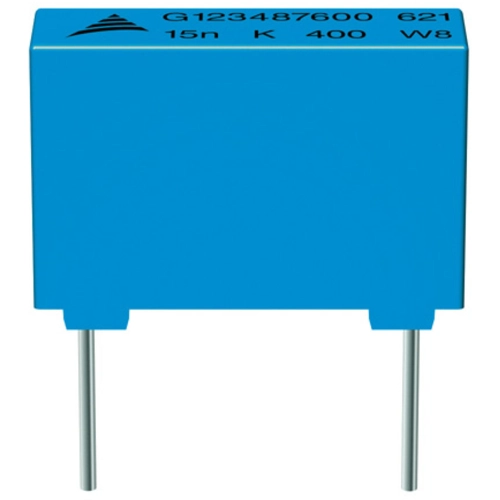

B32621A5224J289 | TDK (EPCOS)
MKP film capacitor, 220 nF, ±5 %, 160 V (DC), PP, 10 mm, B32621A5224J289
Unit Price (€ / pc.)
0.4522 € *
Available: 0 pcs.
Leadtime: 18 Weeks **
Film capacitor, B32621A5224J289, EPCOS
Metallized polypropylene film capacitor (MKP)
Features
- Very high pulse strength
- Very good self-healing properties
- Smallest possible dimensions
- High contact reliability
- RoHS-compatible
Applications
- Compact fluorescent lamps (CFL)
- SMPS
Technical specifications
| Anzahl der Pins | 2 | |
| Bauform | radial | |
| Breite | 6 mm | |
| Dielektrikum | PP | |
| Höhe | 12 mm | |
| Kapazität | 220 nF | |
| Länge | 13 mm | |
| max. Temperatur | 105 °C | |
| min. Temperatur | -55 °C | |
| Nennspannung (AC) | 90 V | |
| Nennspannung (DC) | 160 V | |
| Rastermaß | 10 mm | |
| Toleranz | ±5 % |
Download
Logistics
| Ursprungsland | BR |
| Zolltarifnummer | 85321000 |
| Originalverpackung | Ammopack mit 680 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
