B32642B0273J289 | TDK (EPCOS)

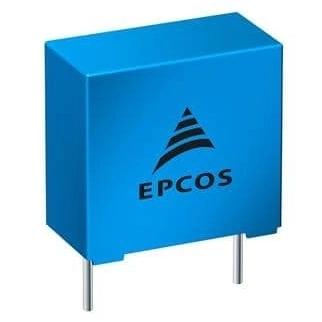

MMKP film capacitor, 27 nF, ±5 %, 1 kV (DC), PP, 15 mm, B32642B0273J289
Order No.: 46D0464
EAN: 4099879853851
MPN:
B32642B0273J289
B32642B273J289
Unit Price (€ / pc.)
0.4641 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Film capacitor, B32642B0273J289, EPCOS
Double sided metallized polypropylene film capacitor MMKP
Features
- Very compact design
- High pulse strength
- High current withstand capability
- Halogen free
Applications
- Electronic ballasts (resonant circuits)
- LLC typology in resonant circuits
- High frequency applications with high current stress
- Switched-mode power supply
Technical specifications
| Anzahl der Pins | 2 | |
| Bauform | radial | |
| Breite | 6 mm | |
| Dielektrikum | PP | |
| Höhe | 12 mm | |
| Kapazität | 27 nF | |
| Länge | 18 mm | |
| max. Temperatur | 125 °C | |
| min. Temperatur | -55 °C | |
| Nennspannung (AC) | 600 V | |
| Nennspannung (DC) | 1 kV | |
| Rastermaß | 15 mm | |
| Toleranz | ±5 % |
Download
Logistics
| Zolltarifnummer | 85321000 |
| Originalverpackung | Ammopack mit 960 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
