B32652A3334J000 | TDK (EPCOS)
MKP film capacitor, 330 nF, ±5 %, 250 V (DC), PP, 15 mm, B32652A3334J000
Unit Price (€ / pc.)
0.8330 € *
Available: 3,819 pcs.
Leadtime: On Request **
Total Price:
0.83 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8330 €
10 pcs.
0.5236 €
50 pcs.
0.4284 €
250 pcs.
0.3570 €
1000 pcs.
0.3070 €
*incl. VAT plus shipping costs
**Subject to prior sale

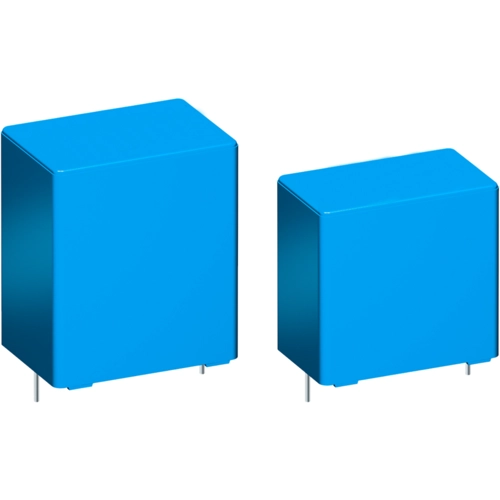

Film capacitor, B32652A3334J000, EPCOS
Metallized polypropylene film capacitor (MKP)
Features
- High pulse strength
- High contact reliability
- Very low inductance
- RoHS-compatible
- Halogen-free
Applications
- Electronic ballasts
- Switch-mode power supplies
- Snubbering
- IGBT

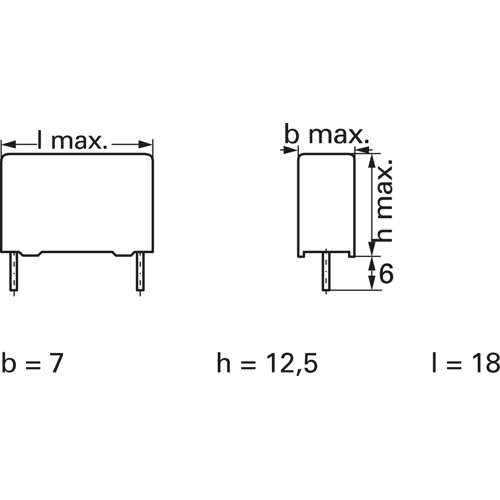

Technical specifications
| Anzahl der Pins | 2 | |
| Bauform | radial | |
| Breite | 7 mm | |
| Dielektrikum | PP | |
| Höhe | 12.5 mm | |
| Kapazität | 330 nF | |
| Länge | 18 mm | |
| max. Temperatur | 110 °C | |
| min. Temperatur | -55 °C | |
| Nennspannung (AC) | 160 V | |
| Nennspannung (DC) | 250 V | |
| Rastermaß | 15 mm | |
| Toleranz | ±5 % |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85321000 |
| Originalverpackung | Bulk mit 1.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
