B32683A2332K000 | TDK (EPCOS)
MFP film capacitor, 3.3 nF, ±10 %, 2 kV (DC), PP, 22.5 mm, B32683A2332K000
Unit Price (€ / pc.)
0.6783 € *
Available: 0 pcs.
Leadtime: 20 Weeks **

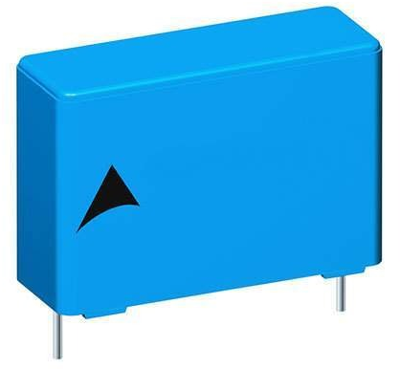

Film capacitor, B32683A2332K000, EPCOS
Metallized polypropylene film capacitor (MFP)
Features
- Very high pulse strength
- Highest possible contact reliability
- Self-healing properties
- RoHS-compatible
Applications
- Smoothing
- Electronic ballast
- Snubbering
- Switch mode power supplies
- High-frequency AC loads
- High voltages and very high currents
Technical specifications
| Anzahl der Pins | 2 | |
| Bauform | radial | |
| Breite | 6 mm | |
| Dielektrikum | PP | |
| Höhe | 15 mm | |
| Kapazität | 3.3 nF | |
| Länge | 26.5 mm | |
| max. Temperatur | 110 °C | |
| min. Temperatur | -55 °C | |
| Nennspannung (AC) | 550 V | |
| Nennspannung (DC) | 2 kV | |
| Rastermaß | 22.5 mm | |
| Toleranz | ±10 % |
Download
Logistics
| Ursprungsland | BR |
| Zolltarifnummer | 85321000 |
| Originalverpackung | Bulk mit 720 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
