B32774X1405K000 | TDK (EPCOS)

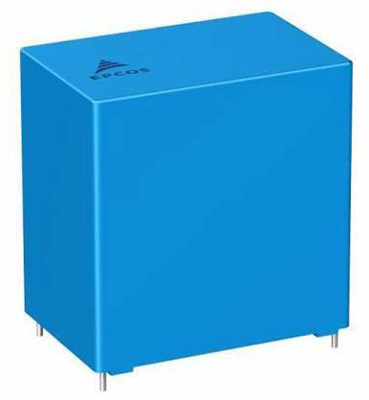

MKT film capacitor, 4 µF, ±10 %, 1.2 kV (DC), PP, 27.5 mm, B32774X1405K000
Unit Price (€ / pc.)
2.4157 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Film capacitor, B32774X1405K000, EPCOS
Metallized polypropylene film capacitor (MKP)
Features
- High CV product, compact
- Good self-healing properties
- Over-voltage capability
- Low losses with high current capability
- Long useful life
- RoHS-compatible
Applications
- Frequency converters
- Industrial and high-end power supplies
- Solar Inverters
Technical specifications
| Anzahl der Pins | 2 | |
| Bauform | radial | |
| Breite | 22 mm | |
| Dielektrikum | PP | |
| Höhe | 36.5 mm | |
| Kapazität | 4 µF | |
| Länge | 31.5 mm | |
| max. Temperatur | 105 °C | |
| min. Temperatur | -40 °C | |
| Nennspannung (DC) | 1.2 kV | |
| Rastermaß | 27.5 mm | |
| Toleranz | ±10 % |
Download
Logistics
| Zolltarifnummer | 85321000 |
| Originalverpackung | Bulk mit 196 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
