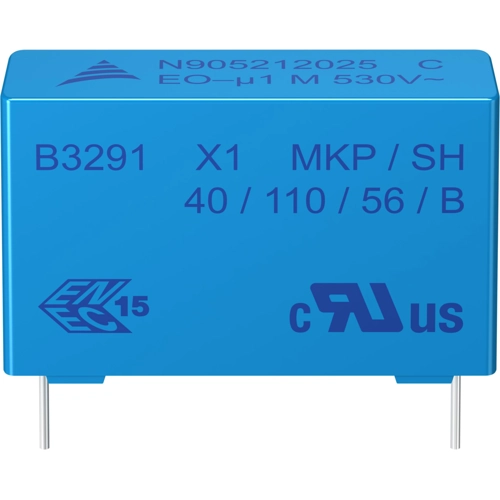

B32912A3154M026 | TDK (EPCOS)
MKP suppression capacitor, 150 nF, ±20 %, 760 V (DC), PP, 15 mm, B32912A3154M026
Unit Price (€ / pc.)
0.4403 € *
Available: 0 pcs.
Leadtime: 22 Weeks **
Film capacitor, B32912A3154M026, EPCOS
EMI suppression capacitor (MKP)
Features
- Very small dimensions
- Good self-healing properties
- High voltage capability
- Halogen-free
- RoHS-compatible
Applications
- X1 class for interference suppression
- Across the line
Technical specifications
| Anzahl der Pins | 2 | |
| Bauform | radial | |
| Breite | 8.5 mm | |
| Dielektrikum | PP | |
| Entstörklasse | X1 | |
| Höhe | 14.5 mm | |
| Kapazität | 150 nF | |
| Länge | 18 mm | |
| max. Temperatur | 110 °C | |
| min. Temperatur | -40 °C | |
| Nennspannung (AC) | 330 V | |
| Nennspannung (DC) | 760 V | |
| Rastermaß | 15 mm | |
| Toleranz | ±20 % |
Download
Logistics
| Ursprungsland | IN |
| Zolltarifnummer | 85321000 |
| Originalverpackung | Rolle mit 500 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
