B32913A5474M000 | TDK (EPCOS)
MKP suppression capacitor, 470 nF, ±20 %, 1 kV (DC), PP, 22.5 mm, B32913A5474M000
Unit Price (€ / pc.)
1.9397 € *
Available: 0 pcs.
Leadtime: 22 Weeks **

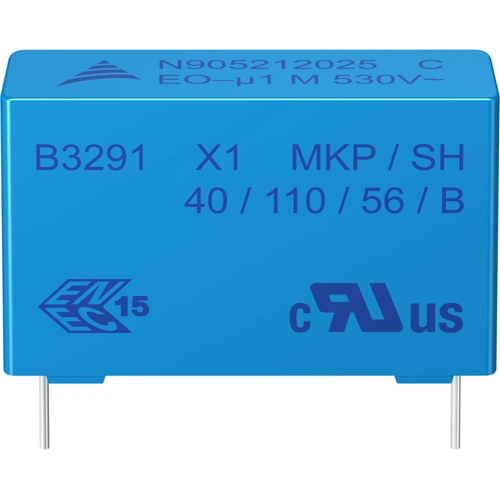

Film capacitor, B32913A5474M000, EPCOS
EMI suppression capacitor (MKP)
Features
- Small dimensions
- Good self-healing properties
- High voltage capability
- Halogen-free
- RoHS-compatible
Applications
- X1 class for interference suppression
- Across the line
Technical specifications
| Anzahl der Pins | 2 | |
| Bauform | radial | |
| Breite | 14.5 mm | |
| Dielektrikum | PP | |
| Entstörklasse | X1 | |
| Höhe | 29.5 mm | |
| Kapazität | 470 nF | |
| Länge | 26.5 mm | |
| max. Temperatur | 110 °C | |
| min. Temperatur | -40 °C | |
| Nennspannung (AC) | 530 V | |
| Nennspannung (DC) | 1 kV | |
| Rastermaß | 22.5 mm | |
| Toleranz | ±20 % |
Download
Logistics
| Ursprungsland | IN |
| Zolltarifnummer | 85321000 |
| Originalverpackung | Bulk mit 260 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
