B82791G2501N001 | TDK (EPCOS)
Power line choke, radial, 10 mH, 500 mA, B82791G2501N001
Unit Price (€ / pc.)
1.7374 € *
Available: 0 pcs.
Leadtime: 16 Weeks **
Power line choke, B82791G2501N001, EPCOS
Features
- Without potting
- Ferrite core
- Suitable for wave soldering
- RoHS-compatible
- High resonance frequency due to special winding technique and omission of potting
Applications
- Suppression of common-mode interferences
- Electronic ballasts in lamps
- Switch-mode power supplies

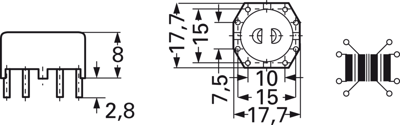

Technical specifications
| Ausführung | Netzleitungsdrossel | |
| Bauform | radial | |
| Breite | 17.5 mm | |
| Gleichstrom | 500 mA | |
| Gleichstromwiderstand | 1 Ω | |
| Höhe | 8 mm | |
| Induktivität | 10 mH | |
| Länge | 17.5 mm | |
| Messfrequenz | 10 kHz | |
| Toleranz | -30/+50 % |
Download
Logistics
| Zolltarifnummer | 85045000 |
| Originalverpackung | Karton mit 80 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
