B84110A0000A040 | TDK (EPCOS)

EMC filter, 50 to 60 Hz, 4 A, 250 V (DC), 250 VAC, 2.7 mH, PCB connection, B84110A0000A040

Order No.: 74D7891
EAN: 4099889077902
MPN:
B84110A0000A040
B84110AA40
Series: B84110A

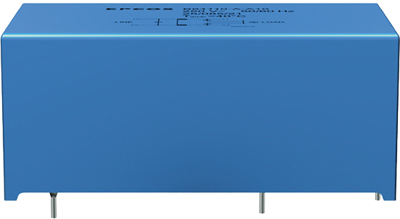

B84110A0000A040 TDK (EPCOS) Interference suppression filter
Image may differ
Unit Price (€ / pc.)
10.2935 € *
Available: 0 pcs.
Leadtime: 15 Weeks **
Total Price:
1,698.43 € *
*incl. VAT plus shipping costs
**Subject to prior sale
165 pcs.
10.2935 €

EMC filter, B84110A0000A040, EPCOS

2-line filter for PCB mounting

Features

  • High insertion loss
  • For PCB mounting
  • Cost-effective EMC solution

Applications

  • Low and medium switch-mode power supplies
  • Data system
  • Gambling machines
  • Small-size equipment
  • Industrial electronics
  • DC applications
Technical specifications
Anschluss Leiterplattenanschluss
Anzahl der Phasen 1
Ausführung EMC Filter
Bemessungsspannung 250 VAC
Induktivität pro Leitung 2.7 mH
Kapazität X|Y X2 0,22 µF, Y2 2 x 4700 pF
max. Frequenz 60 Hz
max. Temperatur 100 °C
min. Frequenz 50 Hz
min. Temperatur -25 °C
Mit Sicherung No
Nennspannung (DC) 250 V
Nennstrom 4 A
Logistics
Ursprungsland HU
Zolltarifnummer 85363010
Originalverpackung Bulk mit 165 Stück
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
