B84112B0000B120 | TDK (EPCOS)
EMC filter, 50 to 60 Hz, 20 A, 250 V (DC), 250 VAC, 1.8 mH, faston plug 6.3 mm, B84112B0000B120
Unit Price (€ / pc.)
127.9845 € *
Available: 308 pcs.
Leadtime: 7 Weeks **
Total Price:
127.98 € *
Price list
Quantity
Price per unit*
1 pcs.
127.9845 €
8 pcs.
117.7624 €
16 pcs.
115.1920 €
32 pcs.
112.6335 €
*incl. VAT plus shipping costs
**Subject to prior sale

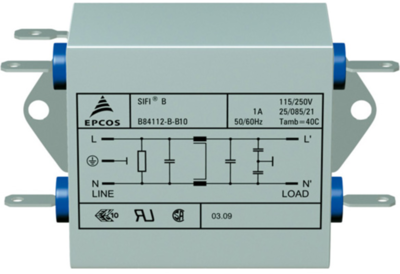

EMC filter, B84112B0000B120, EPCOS
2-line filter SIFI-B for enhanced insertion loss
Features
- Easy to install
- Compact design
- Optimized leakage current
Applications
- Switch-mode power supplies
- Industrial electronics
- Telecommunications
- Data system
- DC applications
Technical specifications
| Anschluss | Flachstecker 6,3 mm | |
| Anzahl der Phasen | 1 | |
| Ausführung | EMC Filter | |
| Bemessungsspannung | 250 VAC | |
| Induktivität pro Leitung | 1.8 mH | |
| integrierter Schalter | No | |
| Kapazität X|Y | X2 2 x 680 nF, Y2 2 x 4,7 nF | |
| max. Frequenz | 60 Hz | |
| max. Temperatur | 85 °C | |
| min. Frequenz | 50 Hz | |
| min. Temperatur | -25 °C | |
| Mit Sicherung | No | |
| Nennspannung (DC) | 250 V | |
| Nennstrom | 20 A |
Download
Logistics
| Ursprungsland | HU |
| Zolltarifnummer | 85363010 |
| Originalverpackung | Bulk mit 8 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
