B84112G0000M020 | TDK (EPCOS)
EMC filter, 50 to 60 Hz, 2 A, 250 V (DC), 250 VAC, 12 mH, faston plug 6.3 mm, B84112G0000M020
Unit Price (€ / pc.)
21.2534 € *
Available: 0 pcs.
Leadtime: 20 Weeks **

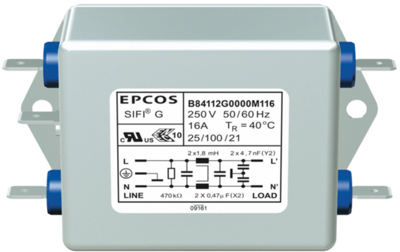

EMC filter, B84112G0000M020, EPCOS
2-line filter SIFI-G for enhanced insertion loss
Features
- Easy to install
- Compact design
- Cost optimized construction
Applications
- Switch-mode power supplies
- Industrial electronics
- Telecommunications
- Data system
- DC applications
- Medical equipment
Technical specifications
| Anschluss | Flachstecker 6,3 mm | |
| Anzahl der Phasen | 1 | |
| Ausführung | EMC Filter | |
| Bemessungsspannung | 250 VAC | |
| Induktivität pro Leitung | 12 mH | |
| integrierter Schalter | No | |
| Kapazität X|Y | X2 2 x 150 nF | |
| max. Frequenz | 60 Hz | |
| max. Temperatur | 100 °C | |
| min. Frequenz | 50 Hz | |
| min. Temperatur | -25 °C | |
| Mit Sicherung | No | |
| Nennspannung (DC) | 250 V | |
| Nennstrom | 2 A |
Download
Logistics
| Zolltarifnummer | 85363010 |
| Originalverpackung | Bulk mit 30 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
