B84113C0000B110 | TDK (EPCOS)

EMC filter, 50 to 60 Hz, 10 A, 250 V (DC), 250 VAC, 3.6 mH, faston plug 6.3 mm, B84113C0000B110

Order No.: 75D2755
EAN: 4099889080377
MPN:
B84113C0000B110
B84113CB110
Series: B84113C

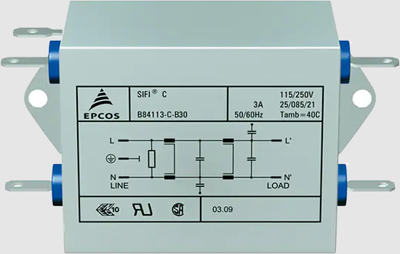

B84113C0000B110 TDK (EPCOS) Interference suppression filter Image 1
B84113C0000B110 TDK (EPCOS) Interference suppression filter Image 2
Image may differ
Unit Price (€ / pc.)
105.4340 € *
Available: 34 pcs.
Leadtime: 6 Weeks **
Total Price:
105.43 € *
Price list
Quantity
Price per unit*
1 pcs.
105.4340 €
5 pcs.
99.1032 €
16 pcs.
95.0572 €
64 pcs.
89.9997 €
*incl. VAT plus shipping costs
**Subject to prior sale

EMC filter, B84113C0000B110, EPCOS

2-line filter SIFI-H for very high insertion loss

Features

  • Easy to install
  • Compact design
  • Optimized leakage current < 0.5 mA

Applications

  • Switch-mode power supplies
  • Industrial electronics
  • Telecommunications
  • Data system
  • DC applications
Technical specifications
Anschluss Flachstecker 6,3 mm
Anzahl der Phasen 1
Ausführung EMC Filter
Bemessungsspannung 250 VAC
Induktivität pro Leitung 3.6 mH
integrierter Schalter No
Kapazität X|Y X2 2 x 470 nF, Y2 2 x 4,7 nF
max. Frequenz 60 Hz
max. Temperatur 85 °C
min. Frequenz 50 Hz
min. Temperatur -25 °C
Mit Sicherung No
Nennspannung (DC) 250 V
Nennstrom 10 A
Logistics
Ursprungsland HU
Zolltarifnummer 85363010
Originalverpackung Bulk mit 16 Stück
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
