B84114D0000B060 | TDK (EPCOS)
EMC filter, 50 to 60 Hz, 6 A, 250 V (DC), 250 VAC, 4.7 mH, faston plug 6.3 mm, B84114D0000B060
Unit Price (€ / pc.)
70.5194 € *
Available: 70 pcs.
Leadtime: On Request **
Total Price:
70.52 € *
Price list
Quantity
Price per unit*
1 pcs.
70.5194 €
5 pcs.
66.2830 €
24 pcs.
62.2251 €
48 pcs.
60.5353 €
*incl. VAT plus shipping costs
**Subject to prior sale

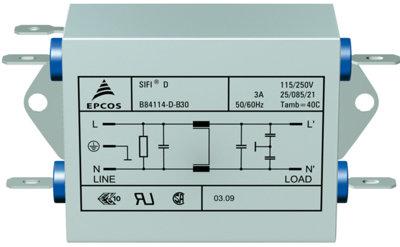

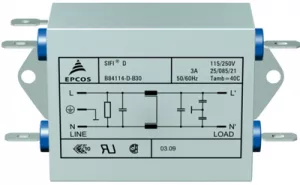

EMC filter, B84114D0000B060, EPCOS
2-line filter SIFI-D for very high insertion loss
Features
- Easy to install
- Compact design
- Optimized leakage current < 0.5 mA
Applications
- Switch-mode power supplies
- Industrial electronics
- Telecommunications
- Data system
- DC applications
Technical specifications
| Anschluss | Flachstecker 6,3 mm | |
| Anzahl der Phasen | 1 | |
| Ausführung | EMC Filter | |
| Bemessungsspannung | 250 VAC | |
| Induktivität pro Leitung | 4.7 mH | |
| integrierter Schalter | No | |
| Kapazität X|Y | X2 2 x 470 nF, Y2 2 x 4,7 nF | |
| max. Frequenz | 60 Hz | |
| max. Temperatur | 85 °C | |
| min. Frequenz | 50 Hz | |
| min. Temperatur | -25 °C | |
| Mit Sicherung | No | |
| Nennspannung (DC) | 250 V | |
| Nennstrom | 6 A |
Download
Logistics
| Ursprungsland | HU |
| Zolltarifnummer | 85363010 |
| Originalverpackung | Bulk mit 24 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
