B84142B0008R000 | TDK (EPCOS)

EMC filter, 50 to 60 Hz, 8 A, 250 V (DC), 250 VAC, print terminal, B84142B0008R000

Order No.: 75D2746
EAN: 4099889080339
MPN:
B84142B0008R000
B84142B8R
Series: B84142B.R000

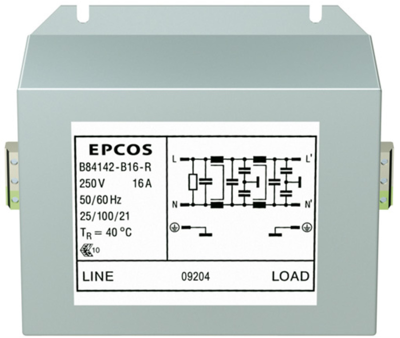

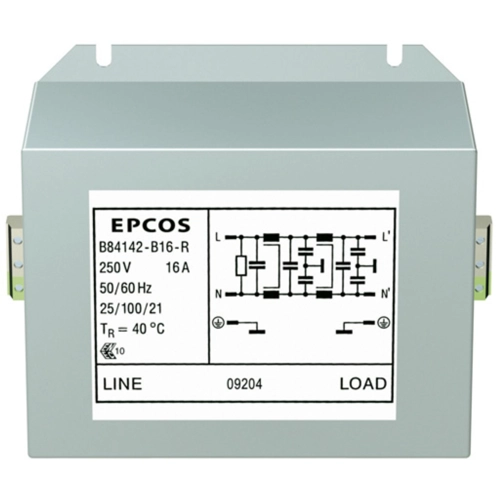

B84142B0008R000 TDK (EPCOS) Interference suppression filter Image 1

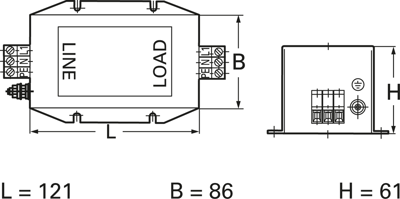

B84142B0008R000 TDK (EPCOS) Interference suppression filter Image 2
Image may differ
Unit Price (€ / pc.)
121.8441 € *
Available: 1 pcs.
Leadtime: On Request **
Total Price:
121.84 € *
Price list
Quantity
Price per unit*
1 pcs.
121.8441 €
8 pcs.
112.0980 €
16 pcs.
109.6585 €
32 pcs.
107.2309 €
*incl. VAT plus shipping costs
**Subject to prior sale

EMC filter, B84142B0008R000, EPCOS

2-line filter for converters and power electronics

Features

  • Very high insertion loss due to two-stage construction
  • Optimized leakage current
  • Easy to install
  • Optimized for long motor cables and operation under full load
  • Degree of protection: IP 20

Applications

  • Frequency converters for motor drives
  • Elevators
  • Conveyor system
  • HVAC system (heating, ventilation and air conditioning)
  • Power supplies
  • DC applications
Technical specifications
ohmscher Widerstand 42 mΩ
Anschluss Printklemme
Anzahl der Phasen 1
Ausführung EMC Filter
Bemessungsspannung 250 VAC
integrierter Schalter No
max. Frequenz 60 Hz
max. Temperatur 100 °C
min. Frequenz 50 Hz
min. Temperatur -25 °C
Mit Sicherung No
Nennspannung (DC) 250 V
Nennstrom 8 A
Logistics
Ursprungsland HU
Zolltarifnummer 85363010
Originalverpackung Bulk mit 8 Stück
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
